Description

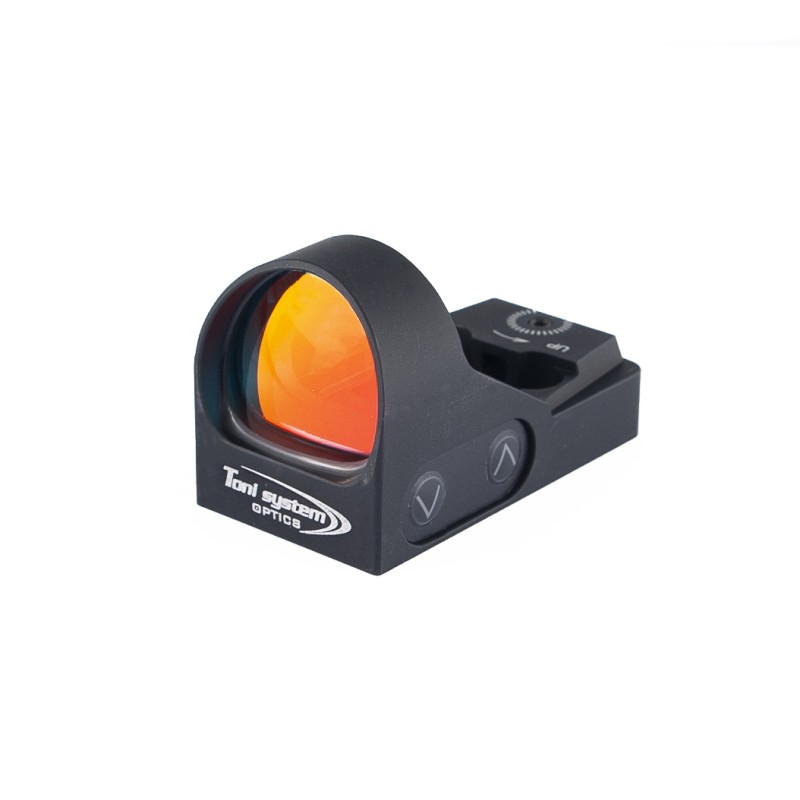

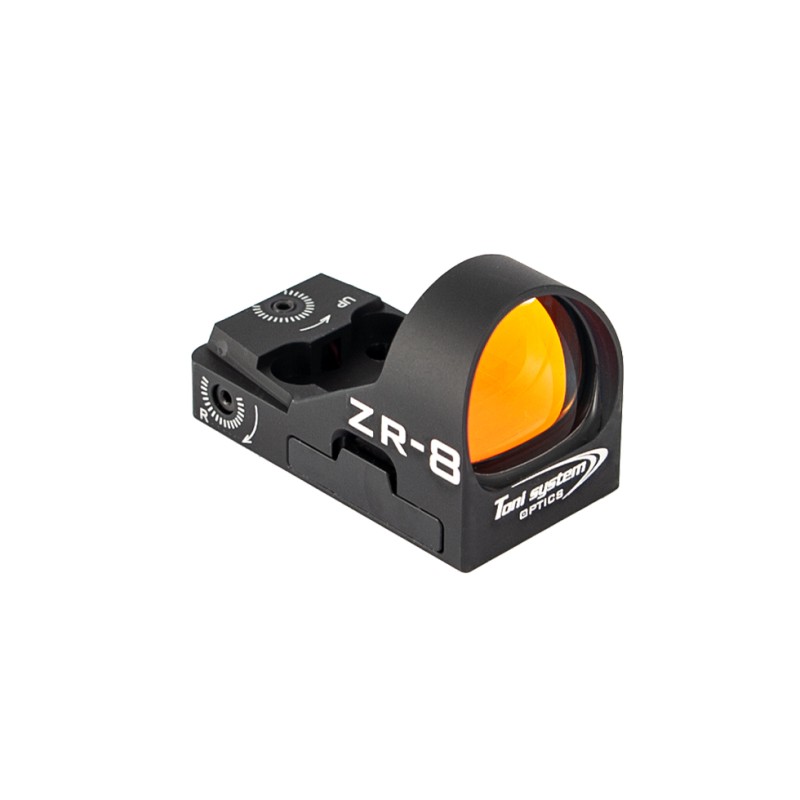

ZR8 Red Dot Sight 8 MOA – Compact Reflex Optic for Sport Shooting
The ZR8 red dot sight is a high performance reflex optic designed to deliver fast target acquisition and improved shooting control in sport and dynamic shooting. Its compact size and durable construction make it suitable for pistols, rifles and carbines.
Equipped with a 8 MOA red dot, the optic offers an excellent balance between speed and precision, making it ideal for rapid shooting disciplines where quick target acquisition is essential.
The large viewing window provides a wide and clear sight picture, while the anti reflection coated lens with 1x zoom ensures natural target visibility. With 10 adjustable illumination levels, the brightness of the red dot can be easily adapted to different lighting conditions.
Built for demanding use, the ZR8 is shockproof up to 1000G and waterproof up to 2 meters. The sight offers precise adjustment with a maximum elevation range of 120 MOA and windage adjustment up to 70 MOA.
The optic is powered by a CR2032 battery, included in the package.
Key features
- Red dot size: 8 MOA
- Dimensions: 51 × 28 × 33 mm
- Lens window: 25 × 22 mm
- Max elevation adjustment: 120 MOA
- Max windage adjustment: 70 MOA
- 10 illumination levels
- Parallax free at 70 meters
- Anti reflection lens with 1x zoom
- Waterproof up to 2 meters
- Shockproof up to 1000G
- Powered by CR2032 battery (included)
- Footprint: C-More
Toni System Optics – Series Comparison: ZR, ZV, ZX
Toni System Red Dot sights are designed for sport shooting and tactical applications. Below are the characteristics of the three series, the comparison table, and an explanation of MOA calculations.
1. Series Overview
- ZR Series (ZR-2 / ZR-4 / ZR-6 / ZR-8 / ZR-10): Streamlined and reliable design. Available in a wide range of dot sizes (2, 4, 6, 8, and 10 MOA) with an adjustment locking screw to prevent zero shift. Ideal for fitting to handguns.
- ZV Series (ZV-3 / ZV-6 / ZV-9): Built for dynamic shooting. Tall lens window, three dot size options (3, 6, 9 MOA), dual-screw battery tray, and motion sensor (auto wake/sleep).
- ZX Series (ZX-4 / ZX-6 / ZX-8): Available in 4, 6, and 8 MOA dot sizes while maintaining a lightweight profile of 41.5 g. Ideal for fitting to shotguns/rifles.
2. Technical Specifications Comparison Table
| Technical Specs | ZR Series (2/4/6/8/10 moa) | ZV Series (3/6/9 moa) | ZX Series (4/6/8 moa) |
|---|---|---|---|
| Dimensions (L x W x H) | 51 x 28 x 33 mm | 51.0 x 36.3 x 35.4 mm | 56.5 x 29 x 32.5 mm |
| Lens Size | 25 x 22 mm | 24.4 x 33.3 mm | 26 x 21.5 mm |
| Weight (incl. battery) | 40 g | 39.6 g | 41.5 g |
| Dot Size (MOA) | 2 MOA / 4 MOA / 6 MOA / 8 MOA / 10 MOA | 3 MOA / 6 MOA / 9 MOA | 4 MOA / 6 MOA / 8 MOA |
| Max Elevation Adjust | 120 MOA | 100 MOA | 100 MOA |
| Max Windage Adjust | 70 MOA | 70 MOA | 70 MOA |
| Motion Sensor | No | Yes (Vibration Sensor) | No |
| Auto Shut-off | After 3 hours | Sleep in 3 min / Off in 4 hours | Standard |
| Battery Tray Lock | Snap-in fit | 2x Hex Screws (1.5 mm) | Protected integrated slot |
| Mechanical Lock Screws | Yes (Requires unlock) | No (Direct click) | No (Direct click) |
| Shock Resistance | 1000g | High resistance | 1000g |
| Waterproof / Parallax | 2 m / Free at 70 m | 2 m / Free at 70 m | 2 m / Free at 70 m |
| Footprint | C-More | C-More | C-More |
3. What is MOA and How to Calculate It
MOA (Minute of Angle) is 1/60th of an angular degree. It measures the physical area covered by the red dot on a target at various distances.
Calculation: A full circle (360°) contains 21,600 minutes of angle. 1 MOA is calculated by taking the circumference at target distance (2 x Pi x Distance) and dividing it by 21,600.
At 100 meters, 1 MOA equals approximately 2.9 cm (1.14 inches at 100 yards).
Red Dot Target Coverage at 100 meters:
- 2 MOA: Covers approx. 5.8 cm (maximum precision for long-range targets).
- 3 / 4 MOA: Cover approx. 8.7 cm and 11.6 cm respectively (precision and general shooting).
- 6 MOA: Covers approx. 17.4 cm (balanced speed and precision).
- 8 / 9 / 10 MOA: Cover approx. 23.2 cm, 26.1 cm, and 29 cm respectively (maximum speed at close range and dynamic shooting).
Technical specifications
- Item code: ZR8OPT
- EAN: 8052464310807
- Weight: 150 g
Compatibility
- ADC-DASAN
- Arex
- Arsenal Firearms
- Bernardelli
- Bul
- FK BRNO
- FN
- Grand Power
- H&K
- Para-ordnance
- Phoenix
- Sig Sauer
- Smith&Wesson
- Walther
