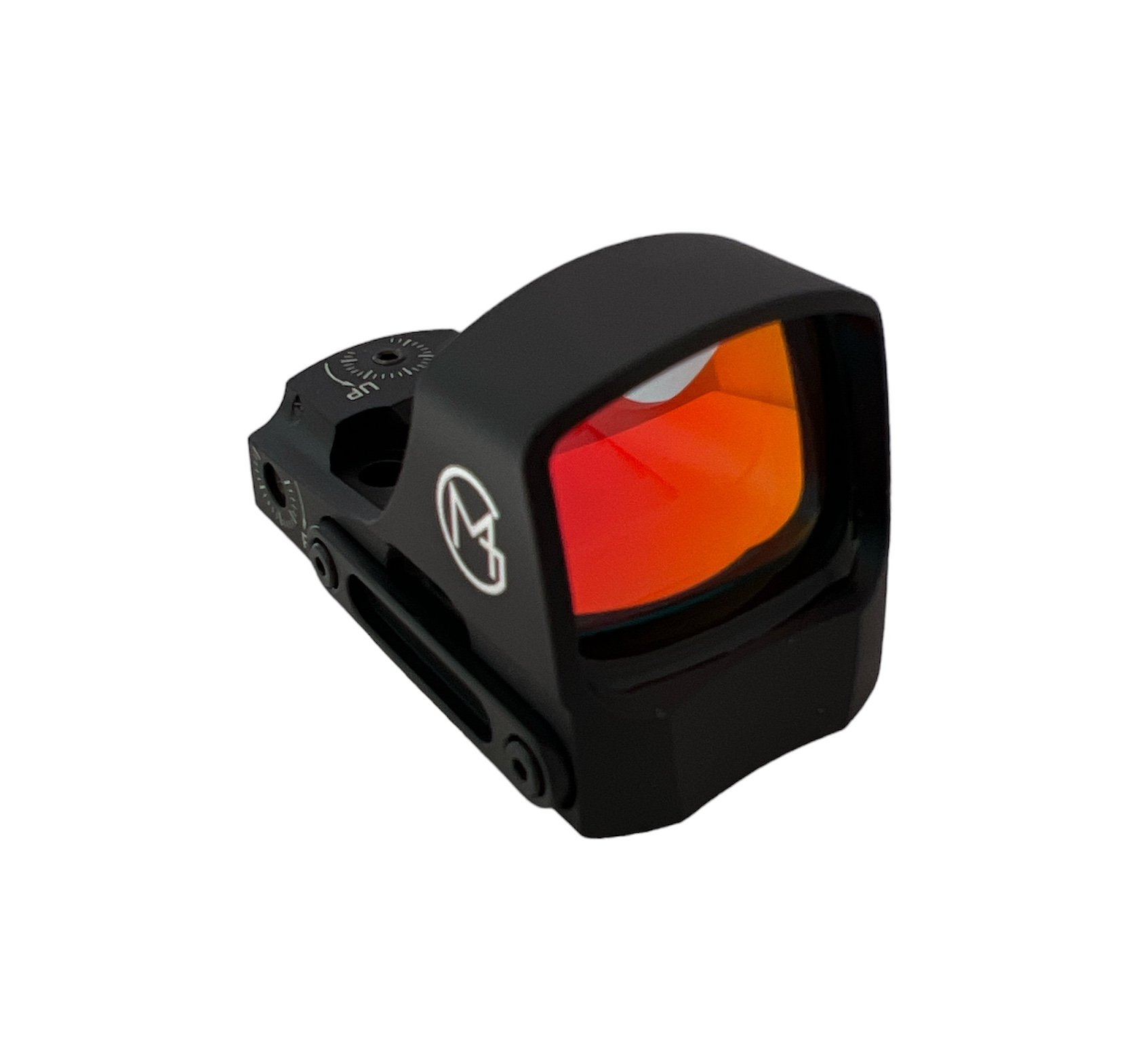

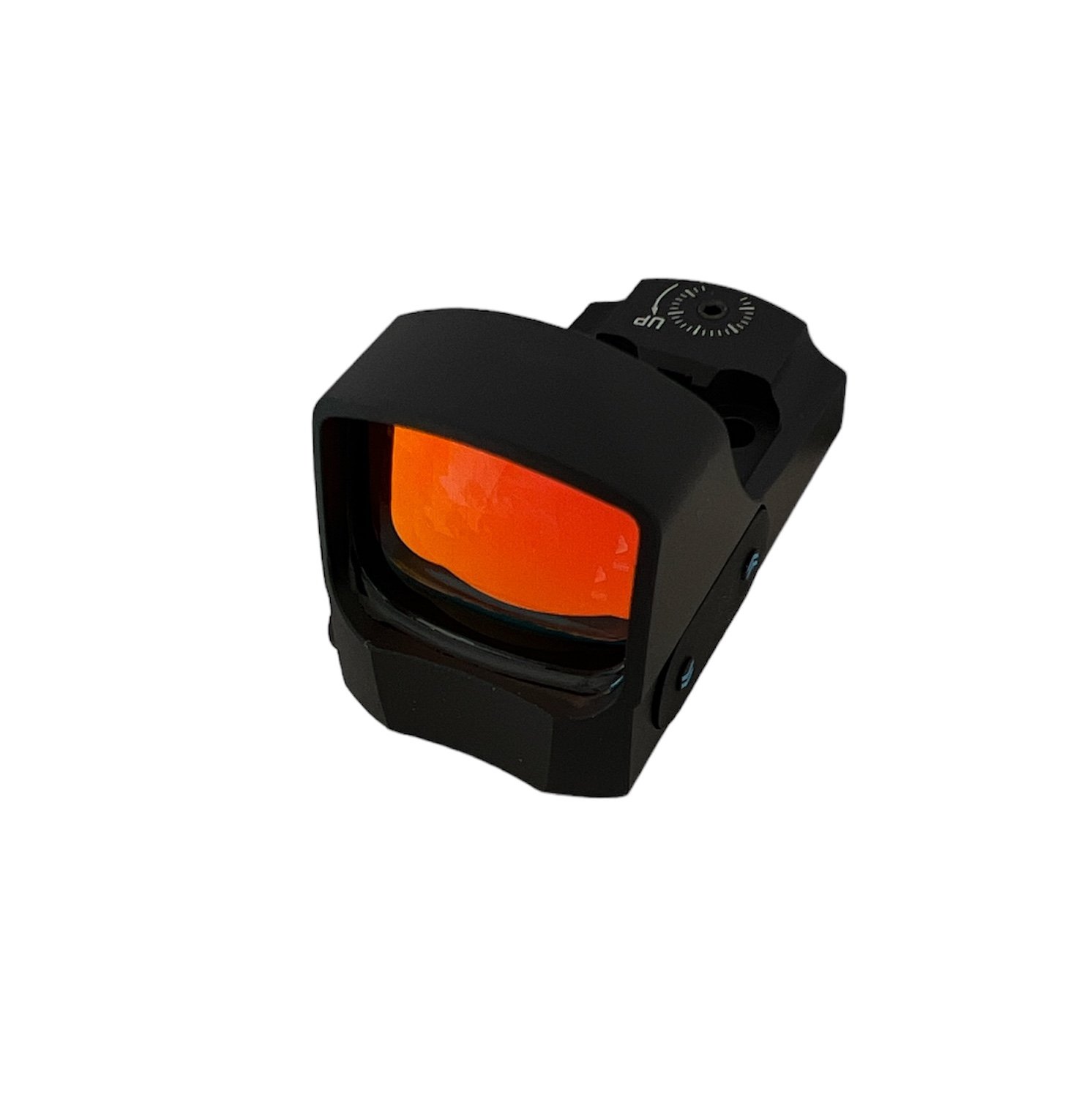

NEW GM Red Dot Sight with Secure Battery Tray

349.00

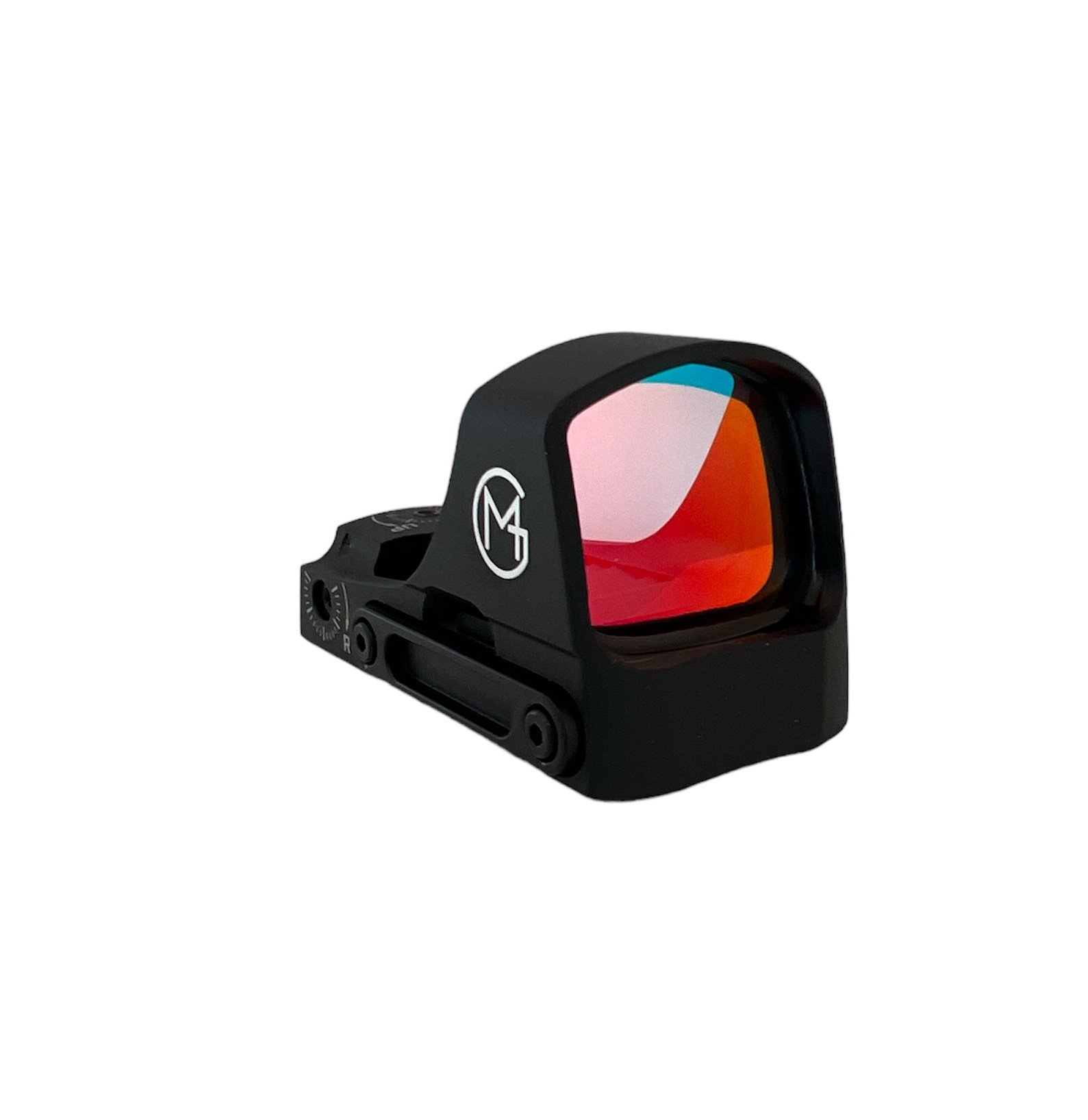

The New electro red dot sight for Production Optic Division GMXA has been designed to enable rapid and accurate target sighting and shooting.

GMASBT SPECIFICATIONS:

  • Dimensions ( L x W x H ) Sight Only: 56.5 x 29 x 32.5 mm
  • Weight ( Incl. Battery ): 41.5 g
  • Window Height: 21.5 mm
  • Window Width: 26 mm
  • Foot print : C-More RTS2
  • Elevation Adjustment Range: 100 MOA
  • Windage Adjustment Range: 70 MOA
  • Magnification: 1 x
  • Body Material: Aluminum
  • Illumination Settings: 10 positions
  • Waterproof: 2 m
  • Battery: CR2032
  • Secure Battery Tray





Description

The New electro red dot sight for Production Optic Division GMXA has been designed to enable rapid and accurate target sighting and shooting.

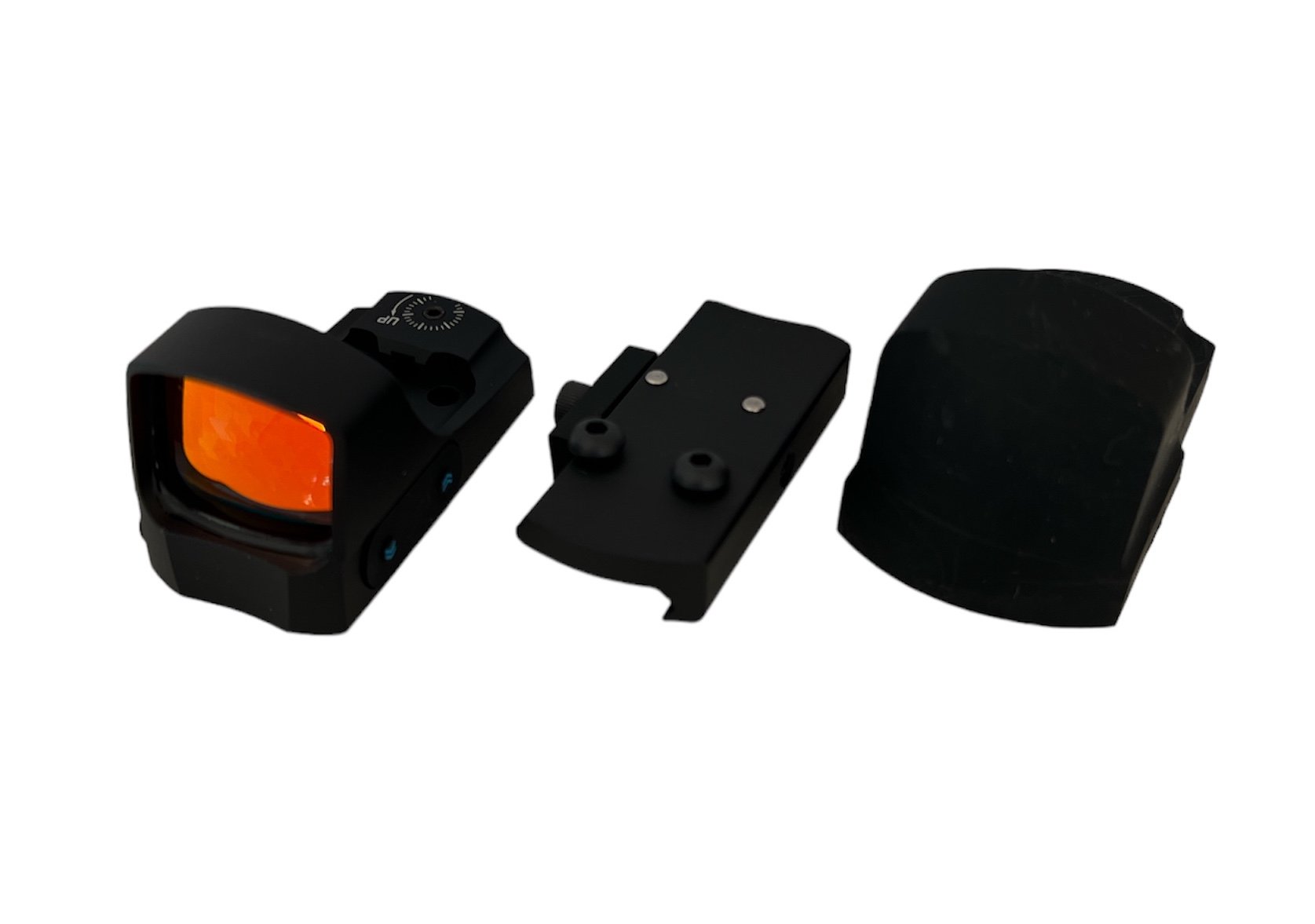

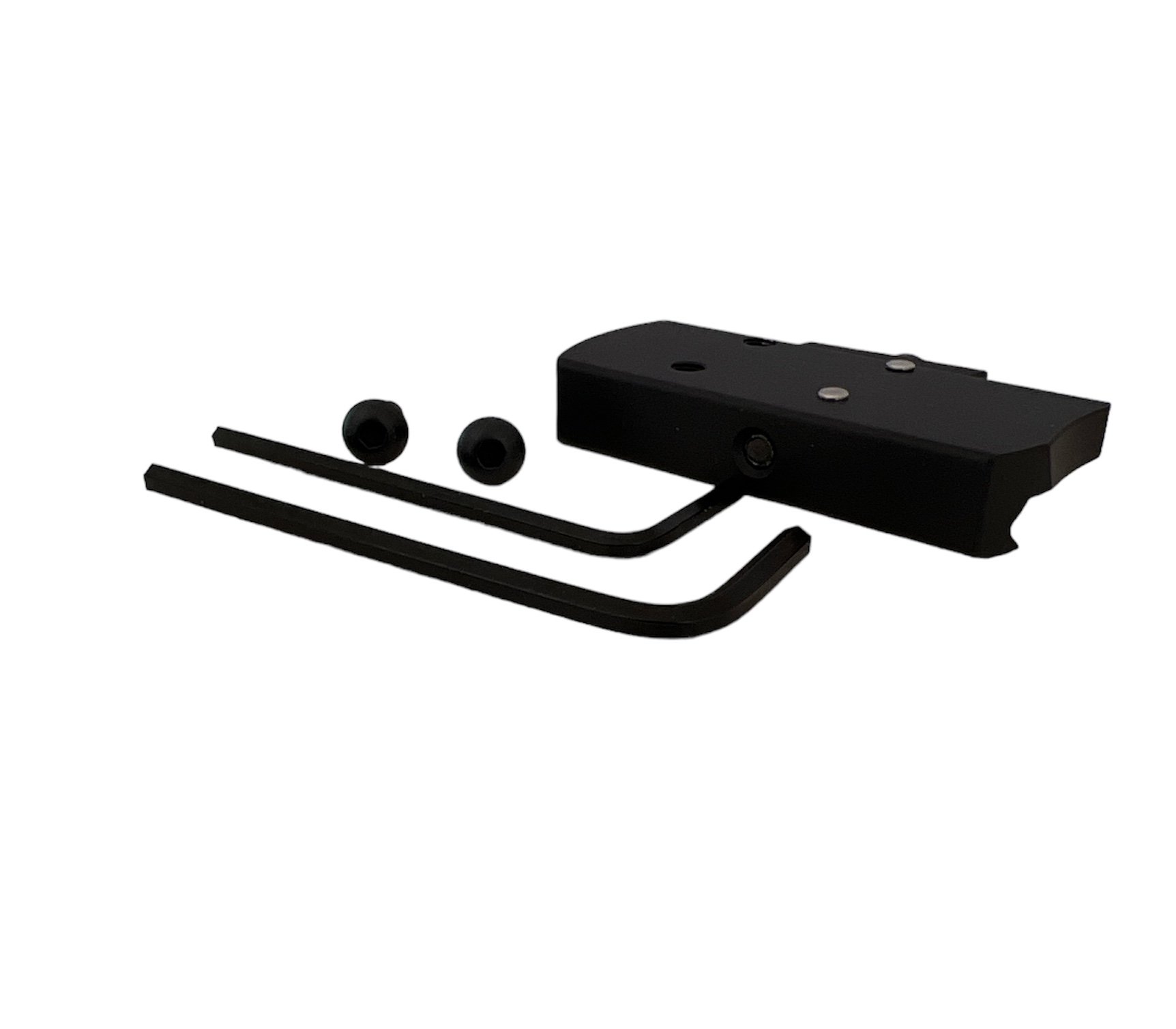

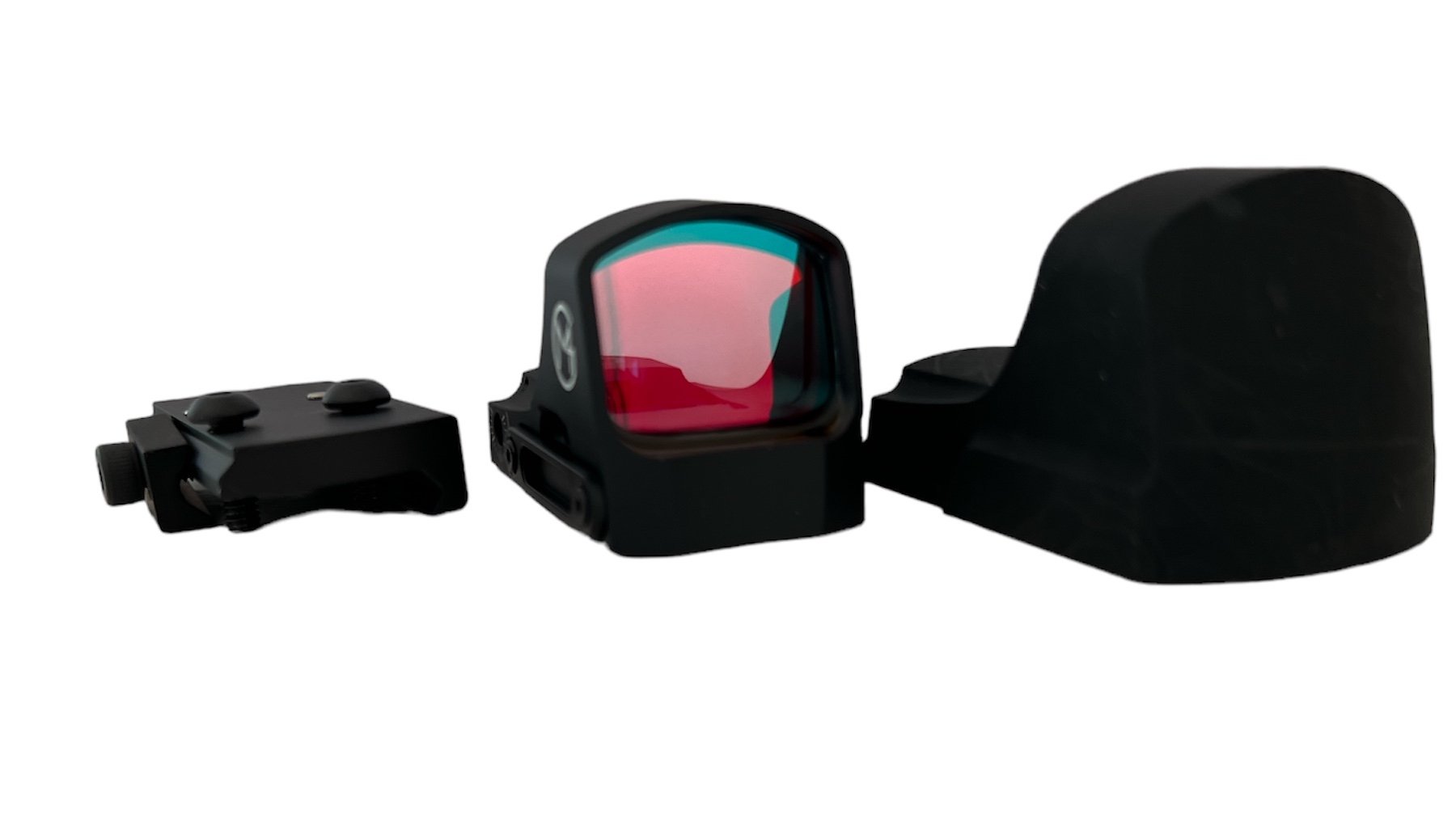

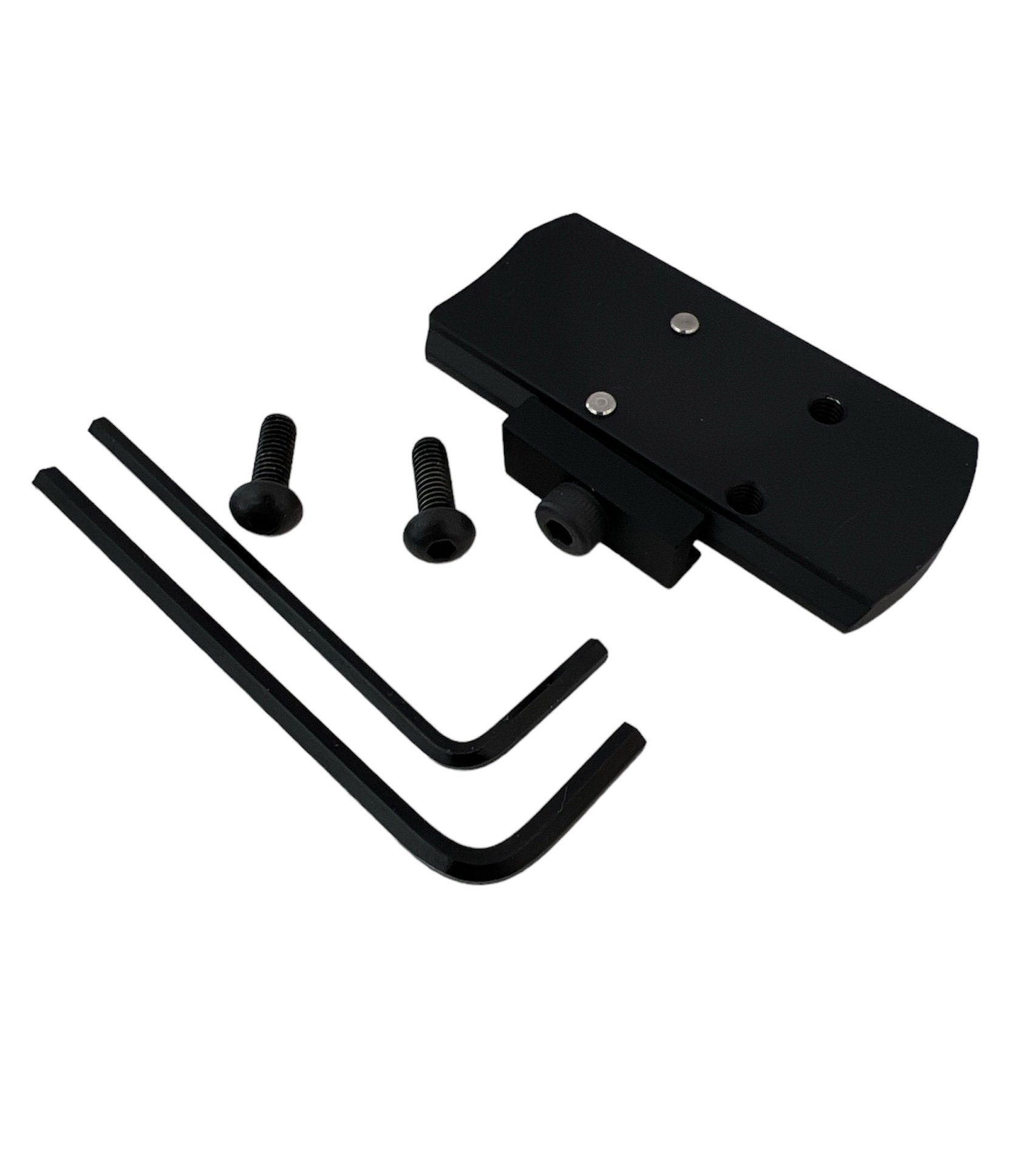

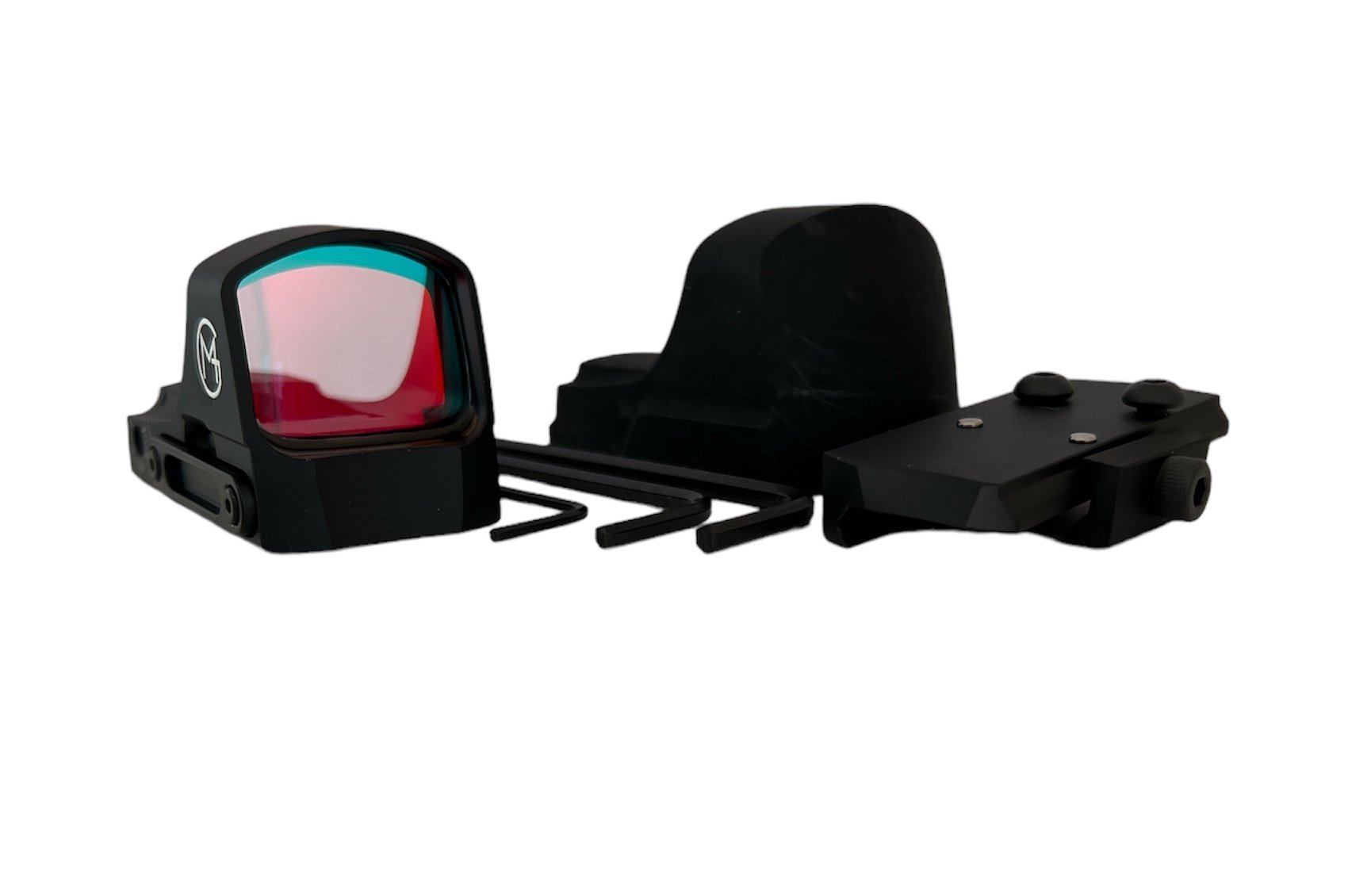

The new GMXA is shipped from factory usually with a rail mount, Weaver mount. But it is available on all rifles and pistol with supplement mounting kits.
The GMXA uses two pressure buttons that allow to set 10 illumination intensity levels for the dot settings.

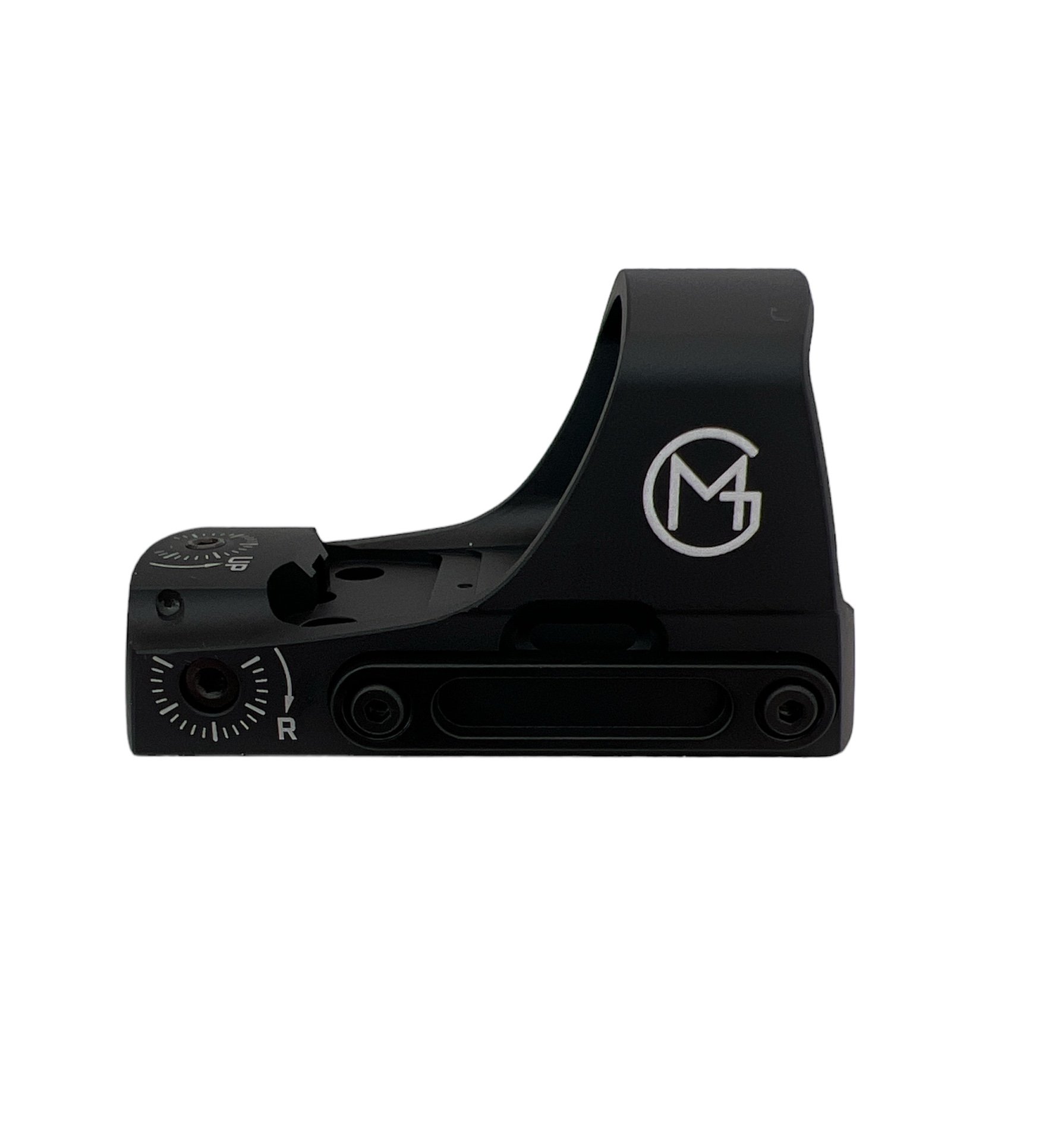

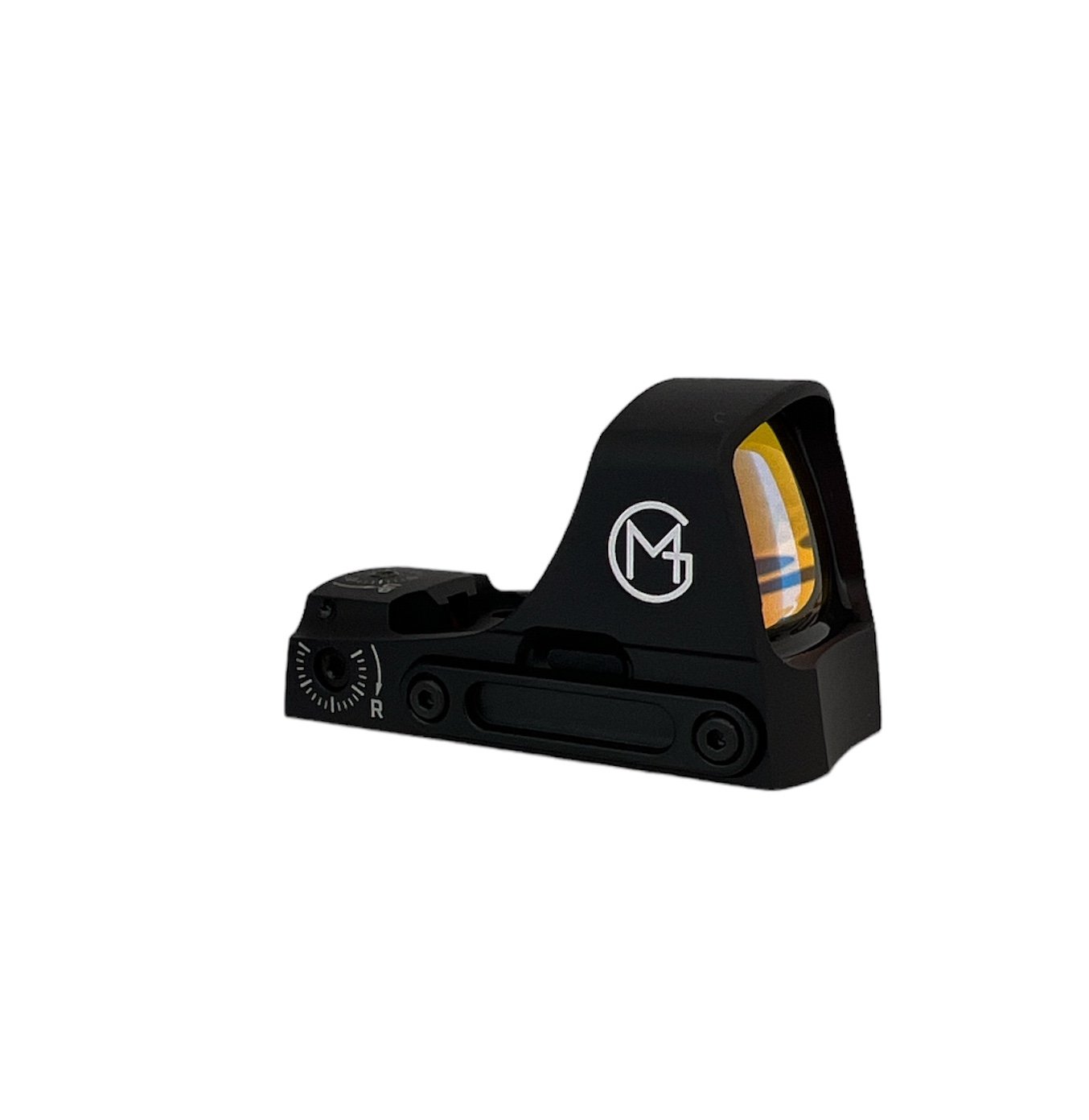

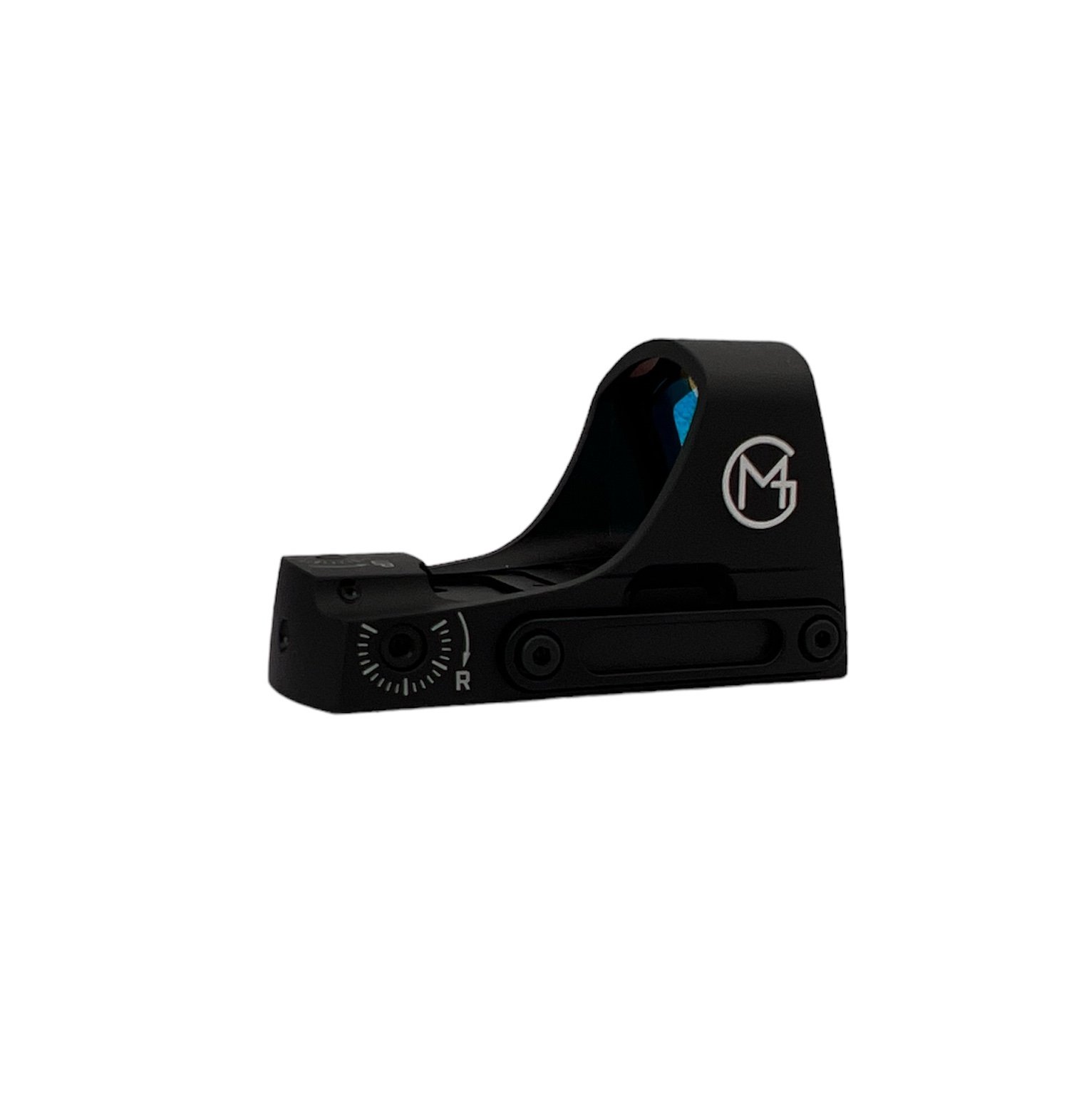

The GMXA sight features adjustable elevation and windage dials with 1MOA clicks.

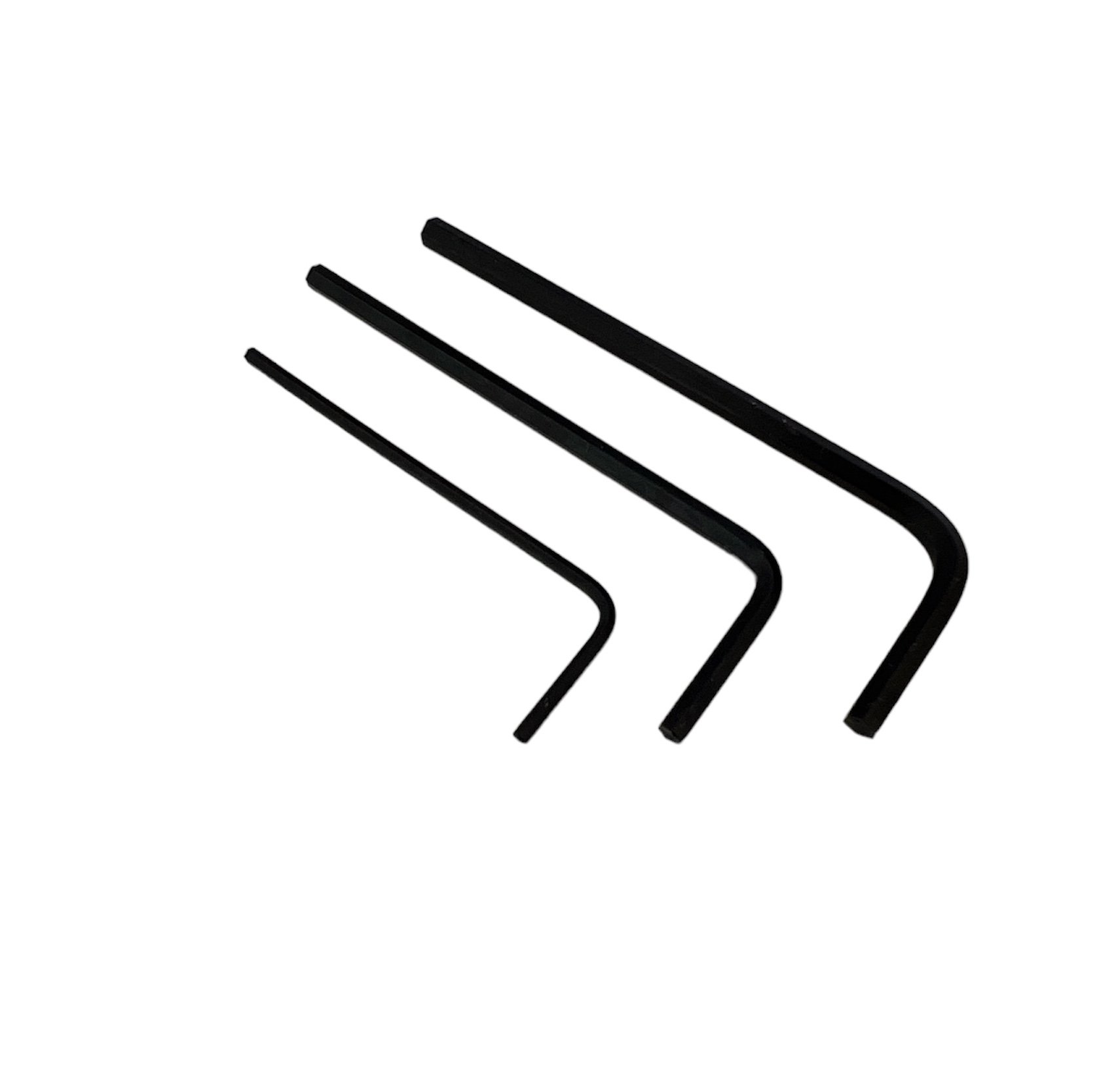

Note: The adjustments are protected by a lock screw with must be loosened with the supplied hex wrench before any adjustment are made.

Note: one click yields one MOA of adjustment.
One click MOA = 2.3cm @ 100m (one inch at 100 yards)

To install or replace the battery, gently pry the battery tray out from the body. Install a new battery with the positive (+) side facing upwards. Push the battery tray back in so it flush with the body. Note: A type of battery = CR2032

Additional information

Weight349 g
Branding

GM Parts

Firearm Type

Handgun, Rifle, Shotgun

Material

Aluminium

Product Type

External Parts

Type of use

Long Distance, Short Distance

Size

4MOA, 6MOA, 8MOA
